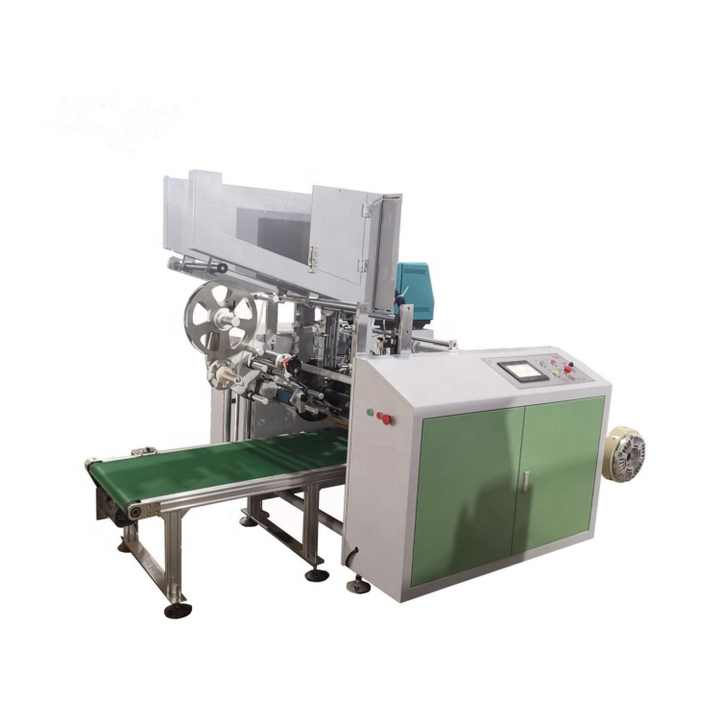

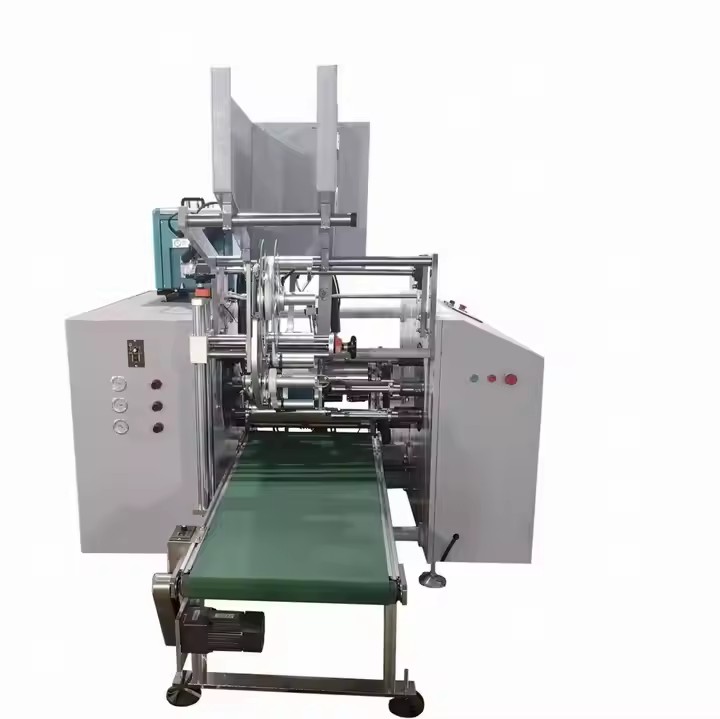

This fully automatic rewinding machine is designed for effortlessly rewinding household rolls like baking paper,cling film and aluminum foil,it excels in manufacturing aluminum foil and baking paper rolls tailored for household and catering purposes
- PLC controlling system,adjustable tension and speed control
- 6 shafts auto changing ensuring a high rewinding speed up to 350m/minute
- meter rewinding countersystem is available, automatic stop at setting length
- Automates the entire rewinding process, eliminating manual effort.
- Simple operation with minimal setup; just load the core and material.
- Works with various rolls (baking paper, cling film, aluminum foil, etc.).
Technical Data
Item Model | PKR-600 |
Product Name | Full automatic household rolls rewinding machine |
Packaging Material | Aluminum foil,baking paper,plastic film |
Rewinding Foil Thickness | 0.008~0.05mm |

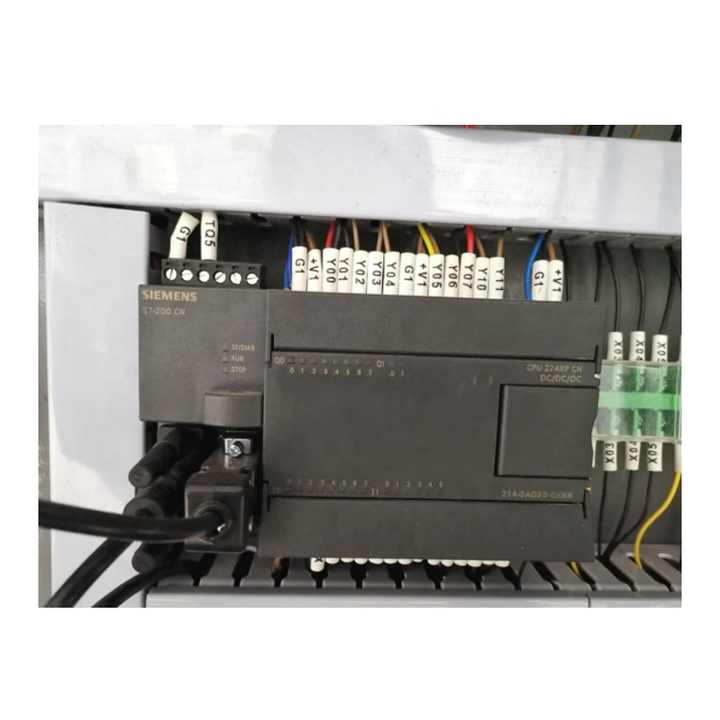

PLC | Siemens Germany |
Max Production Speed | 350m/min |
Number of Spindles | 6 |
Foil Cutting | Automatic |
Inner Core diameter of the mother roll | 76mm or 152mm |
Driven Type | Electric and pneumatic |
Width of material | 260-450mm |
Air Pressure | 0.5Mpa |
Voltage | 380V 50HZ |
Cross-cut Accuracy(mm) | ±0.2 |
Working power | 7.5KW |
dimension(l*w*h) | 3500X1800X2100mm |
Weight | 1600KG |
Machine Application
