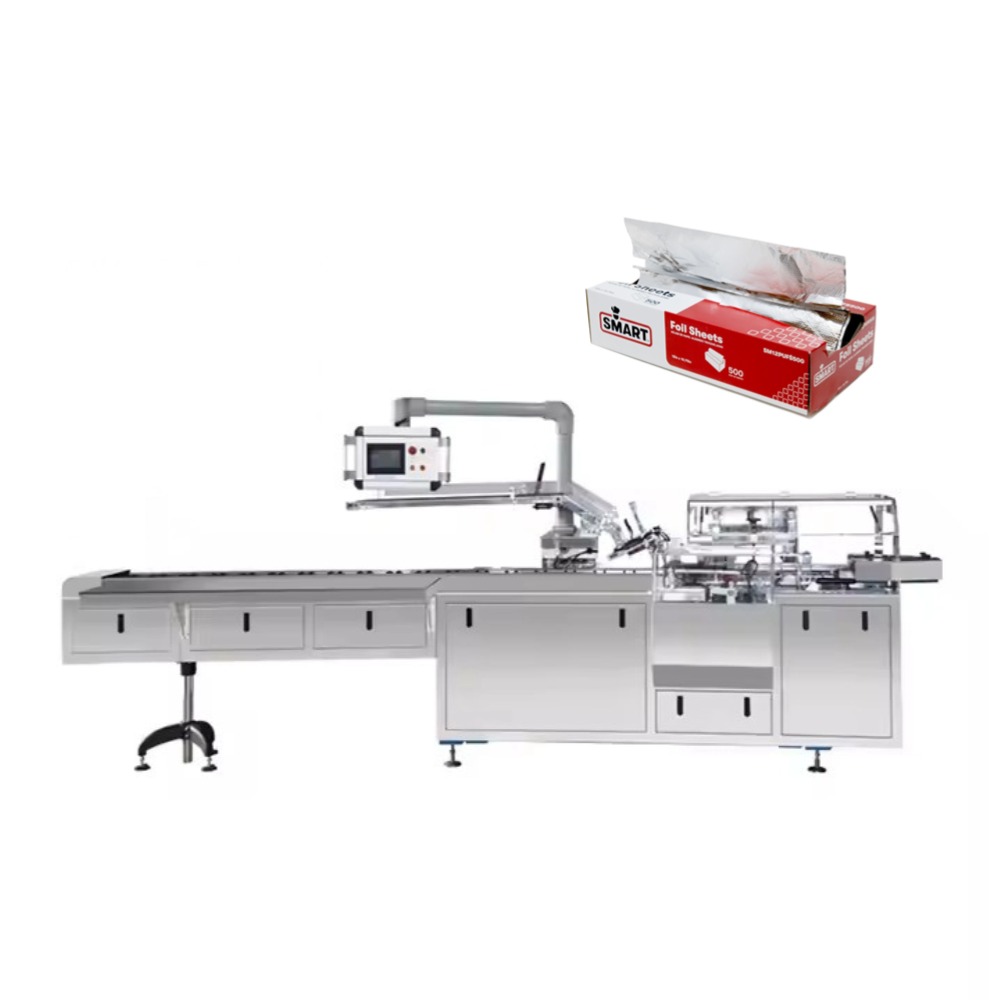

This aluminum foil sheet packing machine is designed to automatically pack aluminum foil sheets into cartons with precision and efficiency. It streamlines the packaging process, ensuring consistent placement, secure sealing, and high-speed operation—perfect for aluminum foil sheet making machine.
✔ Fully Automated Operation – Reduces labor costs and increases packing speed.
✔ Precision Positioning – Ensures each roll is neatly aligned in the carton.
✔ Adjustable Packing Size – Handles various carton dimensions for flexibility.
✔ Sturdy & Reliable Design – Built for continuous industrial use with minimal downtime.
✔ User-Friendly Interface – Easy-to-operate controls for quick setup and adjustments.
Technical Data
Air Pressure | 0.5~0.8 Mpa | |
Power | Servo Motor | 1.5KW |
Feeding Motor | 0.25KW | |
Heating | 3.5KW | |
Working Speed | 10~50 boxes/min | |
Packing Boxes Size | Length | 100mm~320mm |
Width | 100mm~190mm | |
Height | 30mm~100mm | |
Control System | Paper Feeding | Belt Convey |
Control | PLC | |
Adhesive | Hot Melt Adhesive Or Glue | |
Over Dimension (L*W*H) | 4000 mm* 1600mm * 1700mm | |
Weight | 1500 KG | |
Electric | 380V, 50HZ, 3Phase | |
Machine Application
